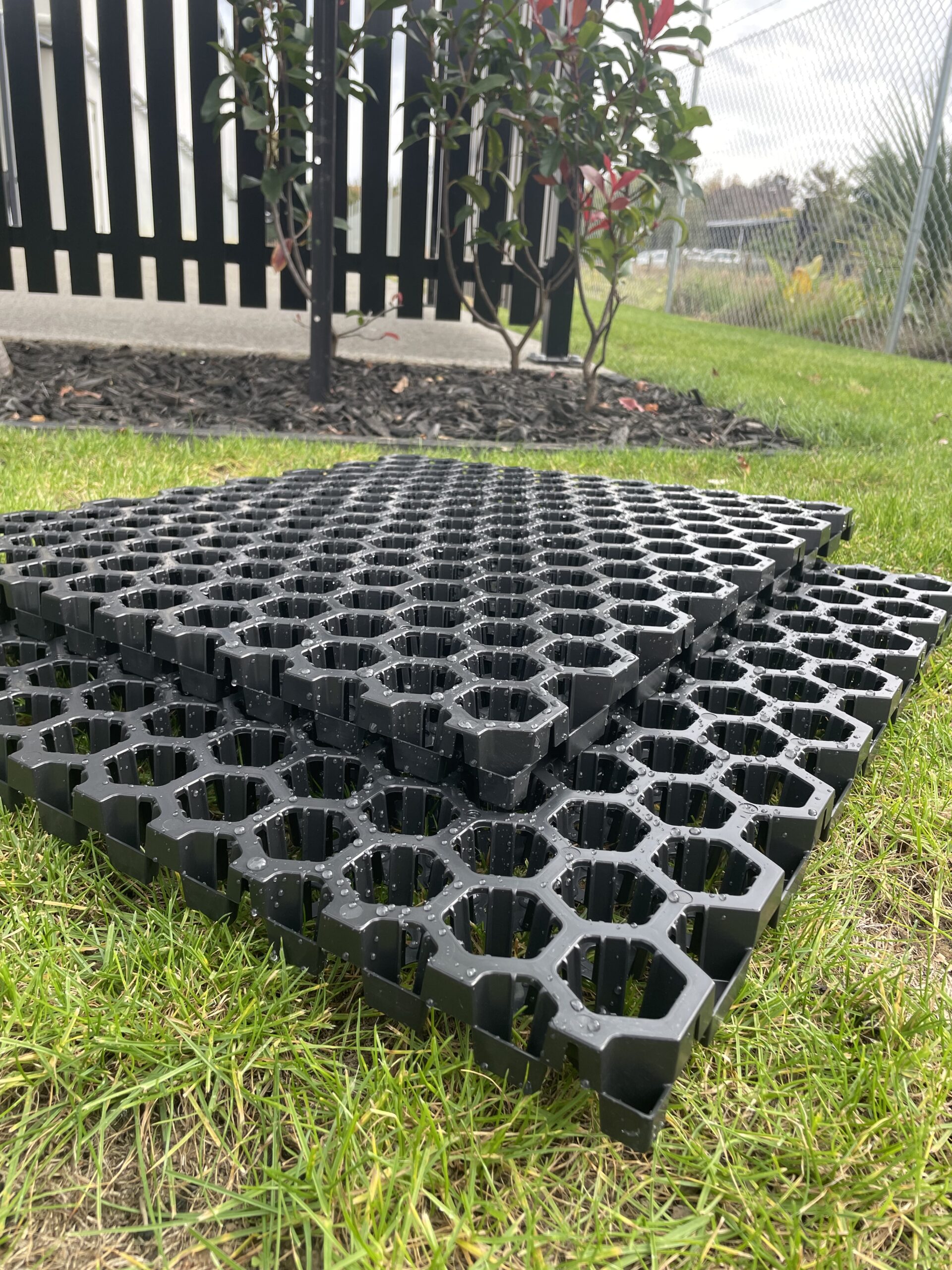

SureSoak Drainage Cell
- Ideal for under artificial turf
- High lateral flow capacity
- Can be used against retaining walls
- Conveniently packed
About Product
SureSoak Drainage Cells are a versatile solution for managing water in landscaping projects. These flat panels come in two thicknesses, 30mm and 50mm, to handle different weight requirements. The 30mm panels are ideal for rooftop gardens, plazas, or podiums. The thicker 50mm panels can handle heavier loads like cars and trucks, making them suitable for artificial grass or standard grassed areas and gravel driveways.

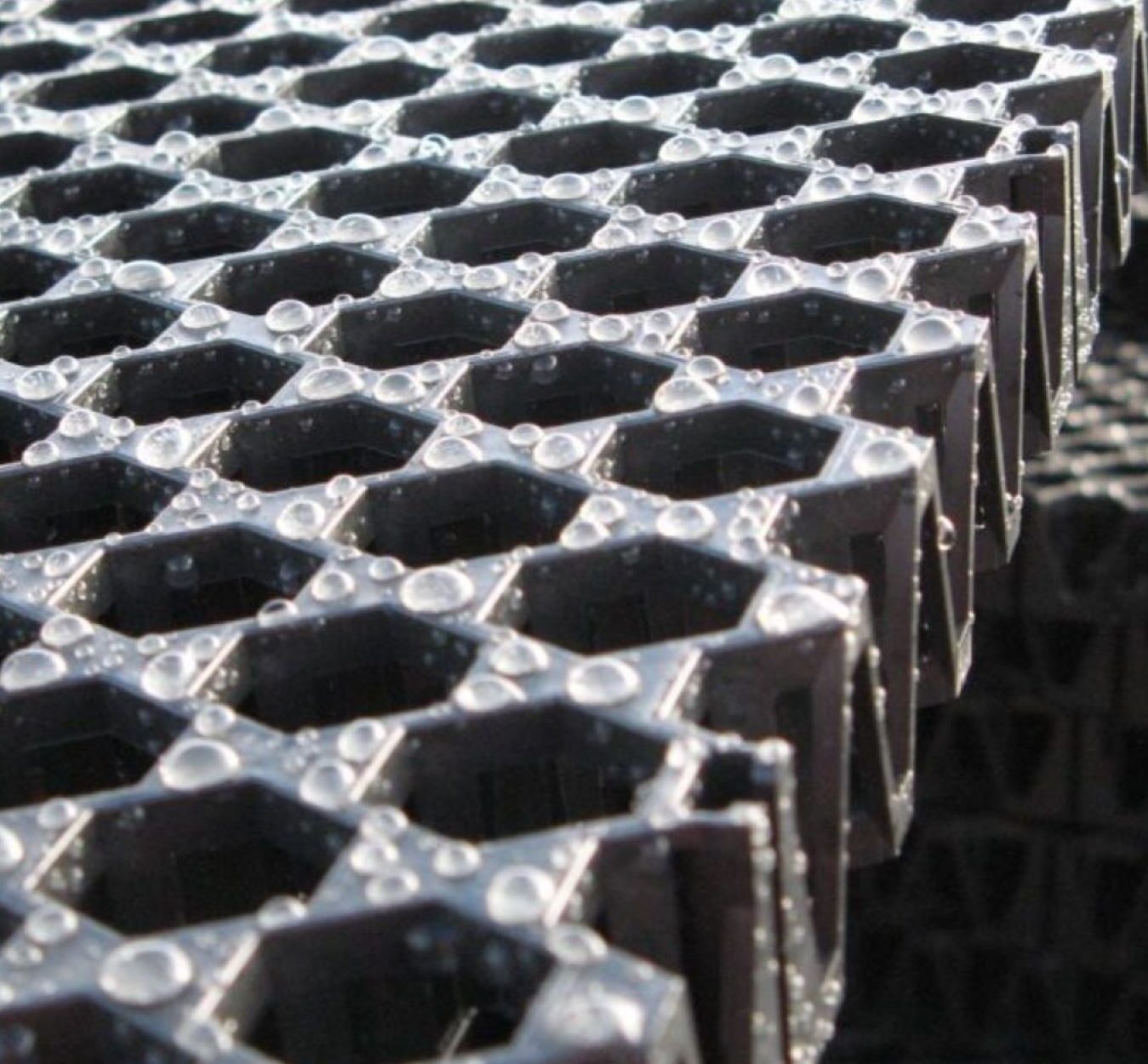

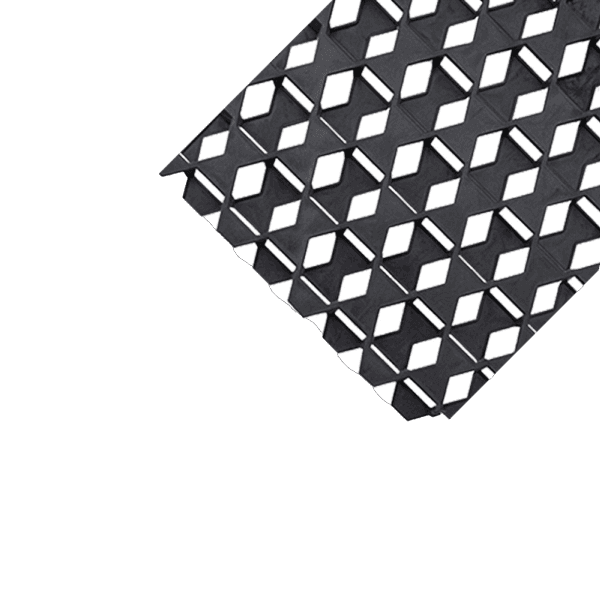

The unique diamond cup structure of SureSoak Drainage Cells offers several benefits. It retains excess water to provide passive irrigation for plants during dry periods, especially beneficial for rooftop gardens. This design also reduces stress on concrete by allowing heat to escape and preventing cracks caused by extreme temperature changes. Additionally, SureSoak Drainage Cells are lightweight and strong, replacing heavy gravel layers for faster installation. They can even be used vertically behind retaining walls, significantly reducing the amount of excavation required.
Product Specs
Code
Product
Size

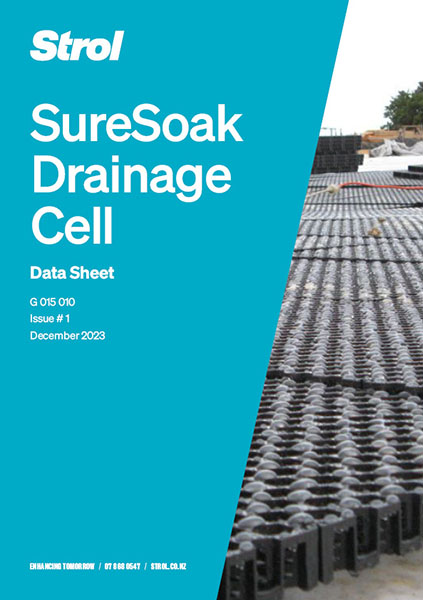

Documentation
Frequently Asked Questions

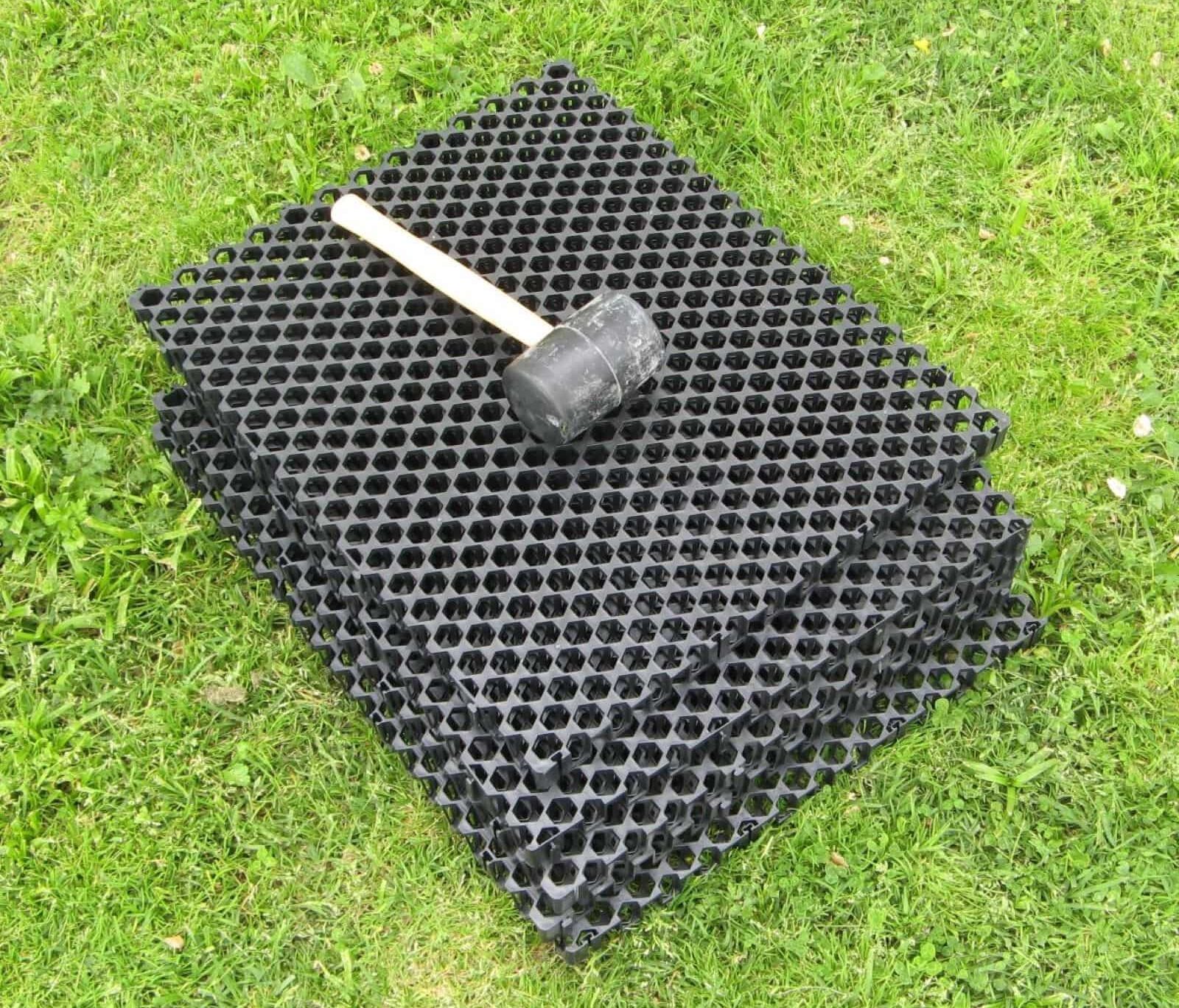

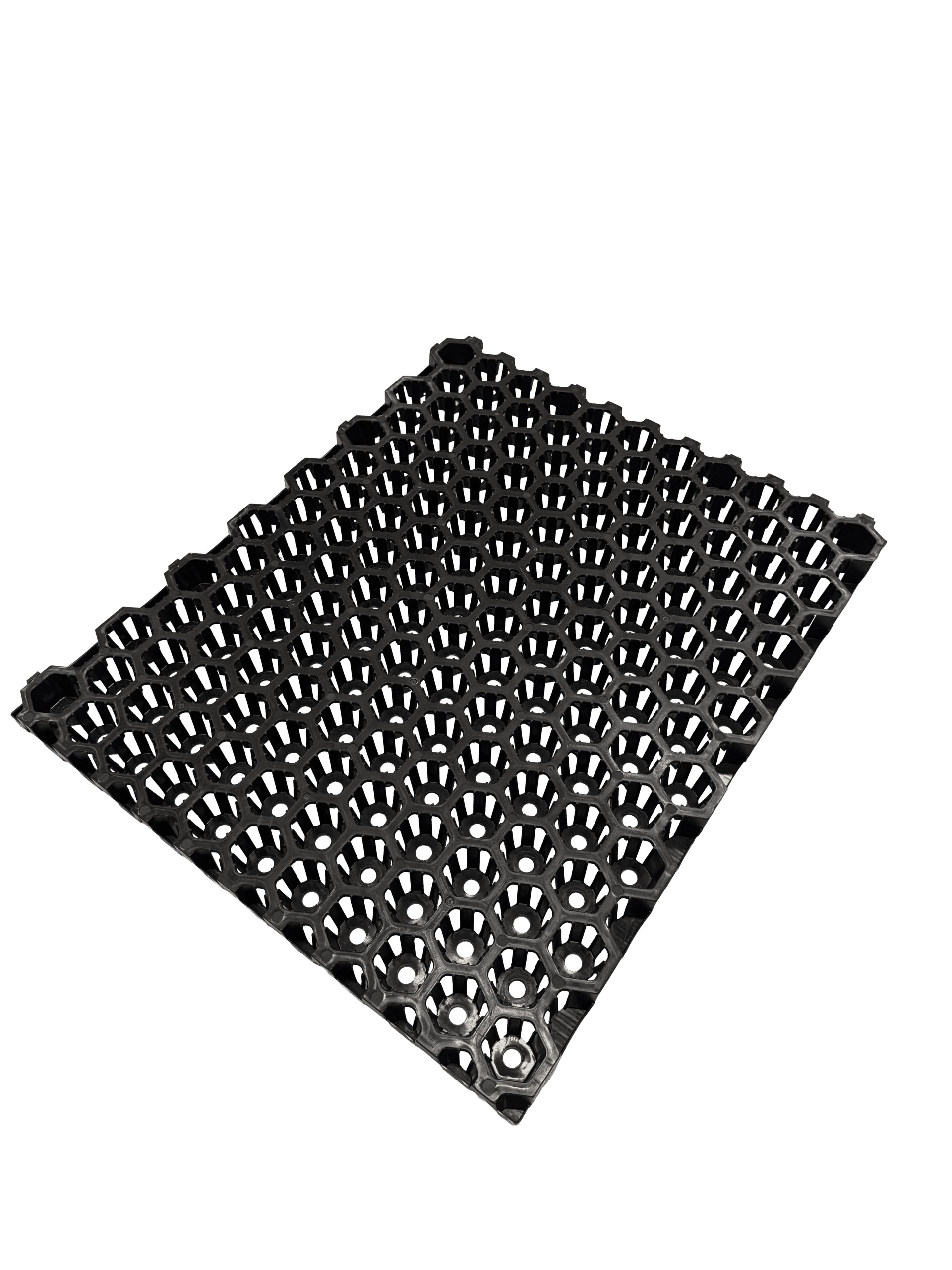

How big are SureSoak drainage cells?
- SureSoak comes in thicknesses of 30mm and 50mm.
- Each panel is 0.6m x 0.5m
- Each panel has integral clips for fast and easy installation
What are they made from?
SureSoak panels are made from environmentally friendly, selected recycled polypropylene.
What do I cover them with?
- If you’re using SureSoak for water retention on rooftops and podiums, cover the cells with SureTex geotextile.
- This will prevent soil from filling in the void, so you will always retain the volume of water retention.

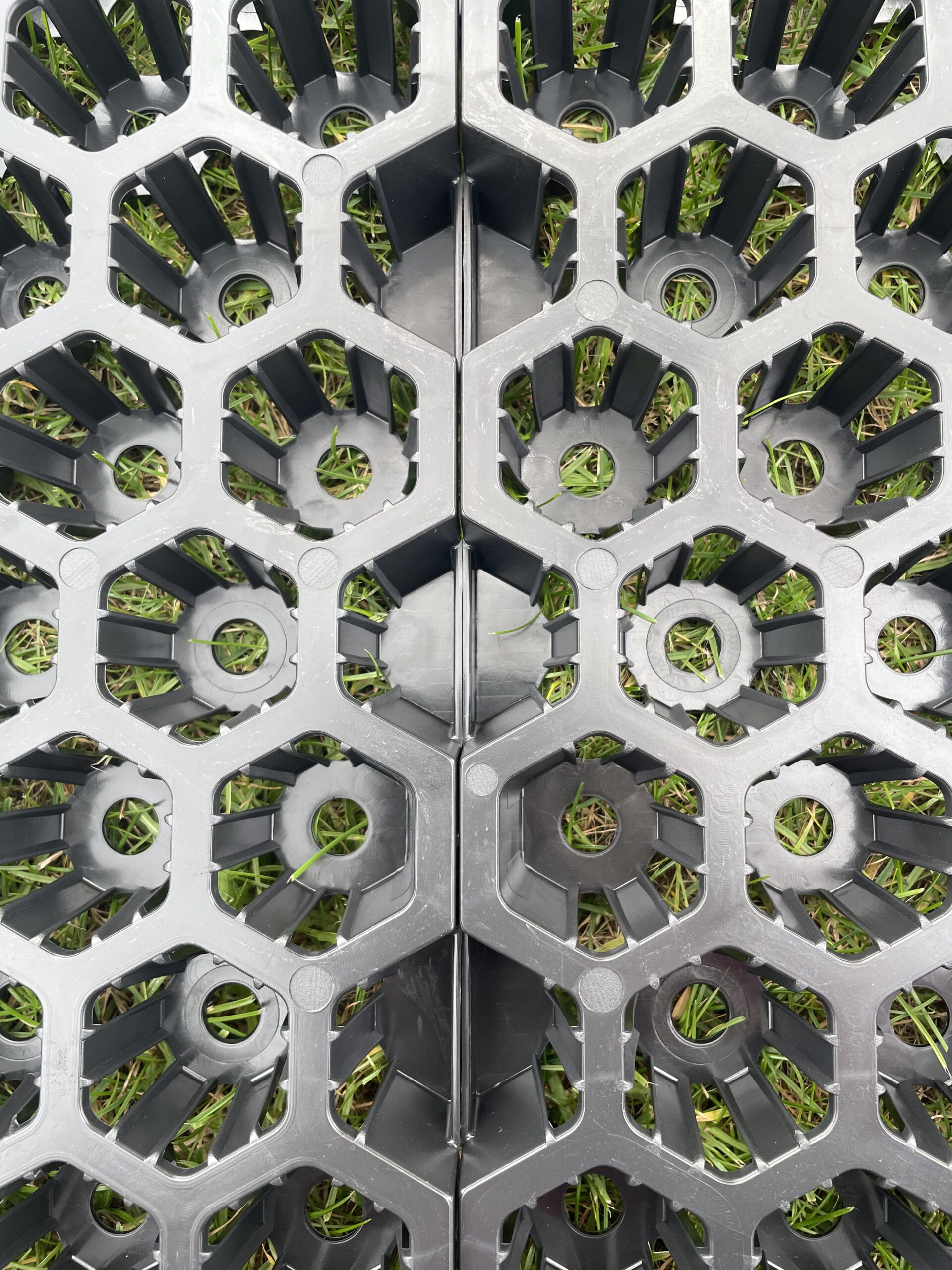

- Otherwise, simply fill the panels with gravel or soil for grassed paving.
What applications do they work best in?
There are two main horizontal ways to use SureSoak drainage panels. The 30mm panels are best suited for areas with weight restrictions, making them ideal for:
- Podium/plaza drainage

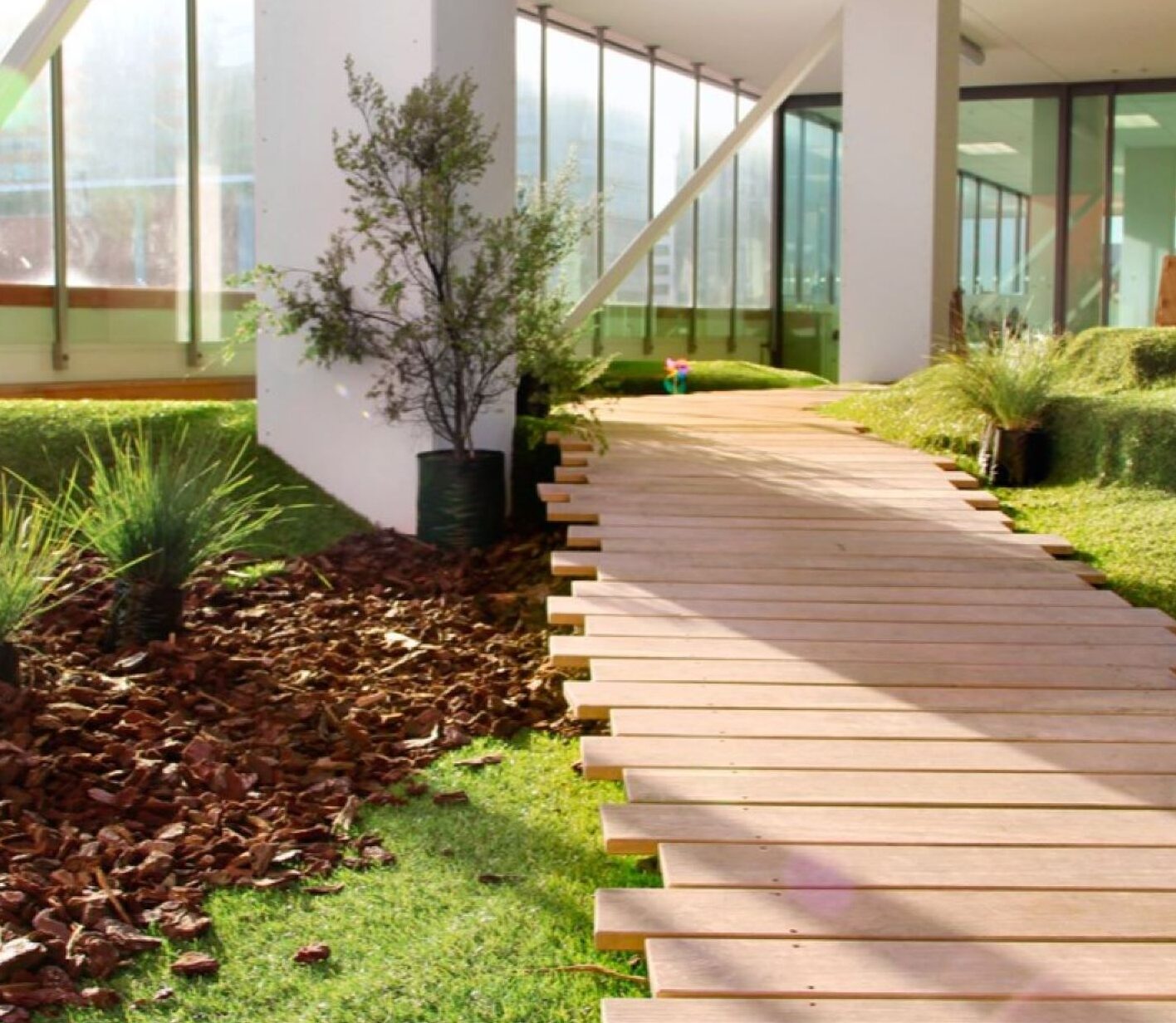

- Rooftop garden drainage
- Planter box drainage
- Load strength >125t/m2 (HD)
- Load strength >105t/m2 (LD)
The 50mm panels can be filled with soil or gravel, and are ideal for:
- Grassed Overflow Stadium and Event Parking
- Gravel Car parks and Driveways
- Loading Dock Areas
- Golf Buggy Paths
- Infiltration Basin Reinforcement
- High use Pedestrian Areas
- Load strength >235t/m2
They can also be used vertically against concrete or timber structures such as buildings or retaining walls.
