SureSoak Stormwater Modules
- Easy to install
- SureSoak systems are economical and low maintenance
- Flat-packed kits for easy transportation
- Robust yet lightweight system
About Product
Looking for a strong, durable stormwater system for various locations around your home, including under the driveway? SureSoak Stormwater Crates are the solution!
This innovative system eliminates the need for a rock-filled soak pit, saving you from the hassle and cost of heavy drainage rock. SureSoak modular crates are an easy and cost-effective way to create any size or shape stormwater system. Whether you need to hold, gradually soak away, or detain stormwater, SureSoak can be configured to meet your needs.

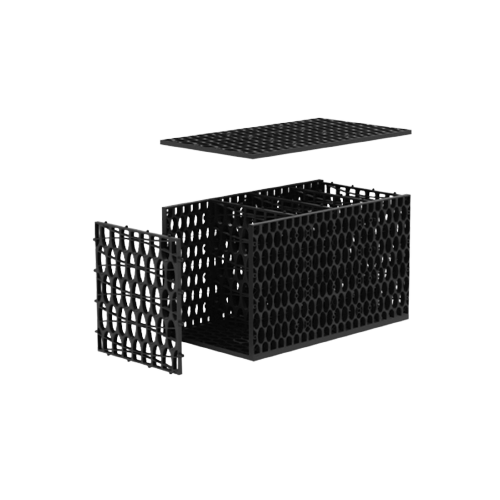

Coming in convenient flatpacks, SureSoak crates clip and stack together easily. Each module has five plates, making them strong enough to handle heavy loads, including cars, perfect for driveways and parking bays. With a 95% void ratio, they require less digging and disposal of spoil. Lightweight and easy to handle, they reduce the need for heavy machinery during installation.
Once you determine the required volume for your site, SureSoak is simple for any tradesman or DIYer to install. For cover recommendations, including aggregate and geotextile, check out our FAQs below.
Product Specs
Code
Product
Size
Documentation
Frequently Asked Questions
How can I prevent SureSoak from filling up with unwanted soil?

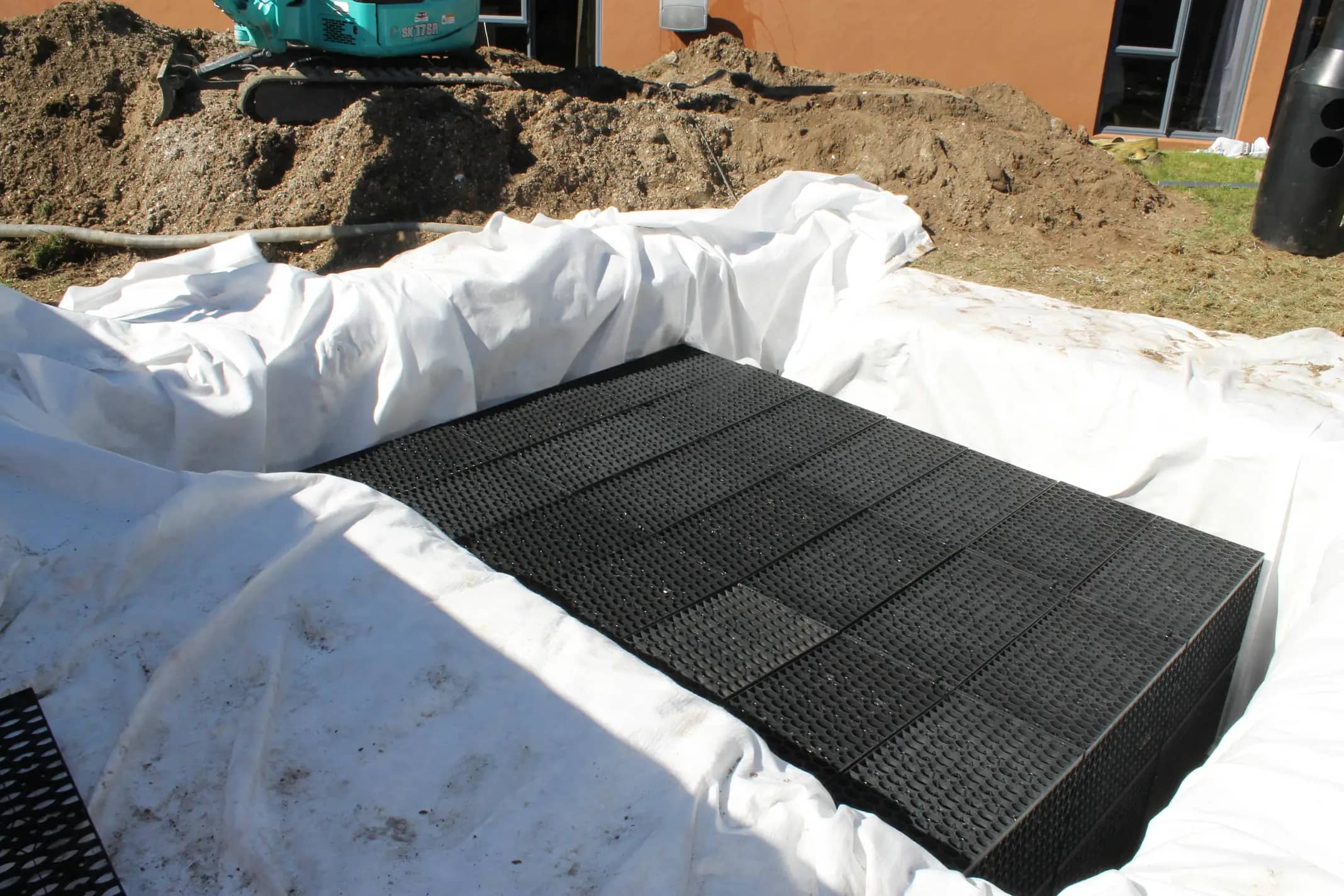

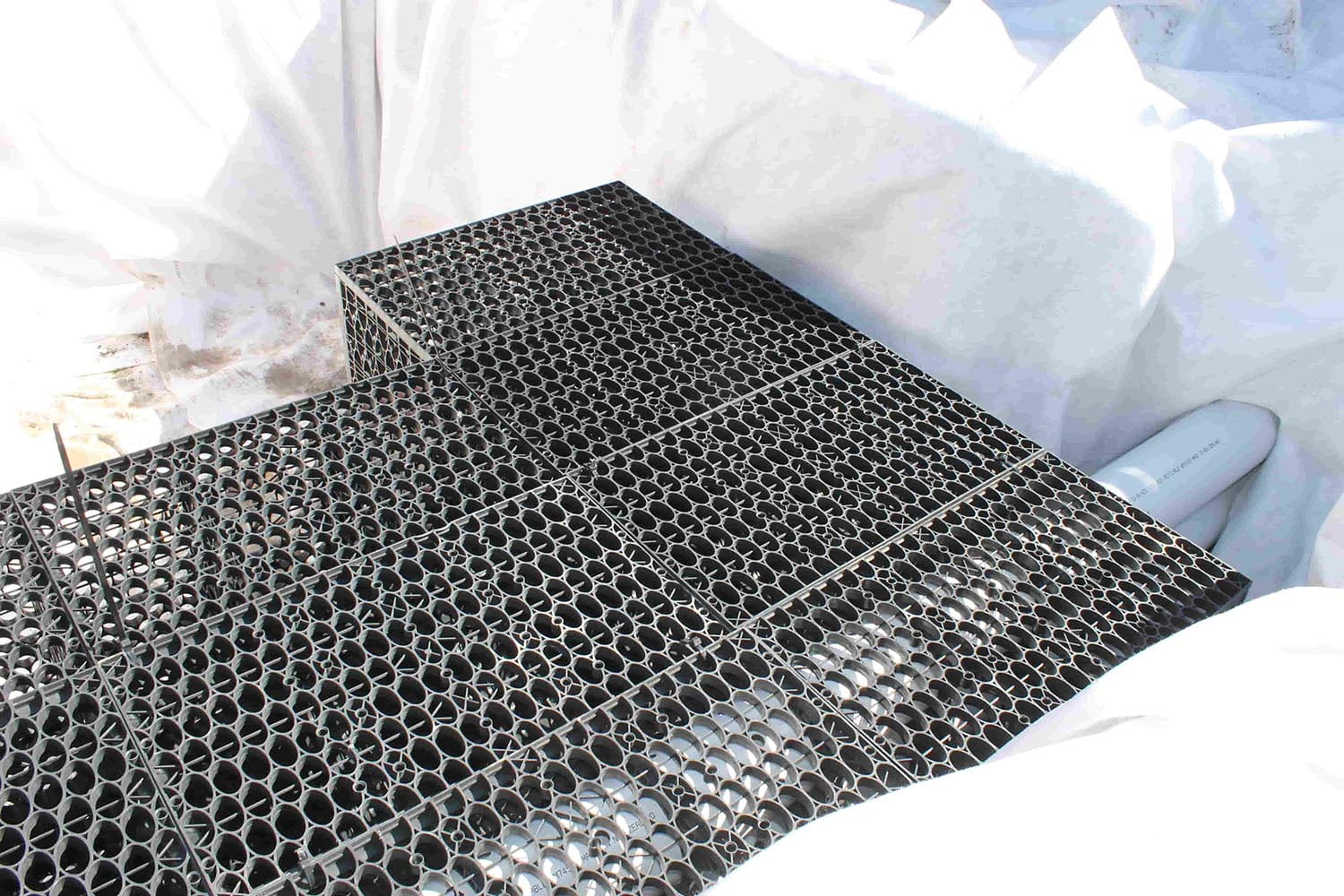

Wrap the completed SureSoak system with SureTex geotextile. This will prevent soil from migrating into your system and clogging it up. SureTex geotextile will also help protect the outer units from abrasion.
What cover is required over the SureSoak modules?
300mm of cover material is needed for non-trafficable applications.
Trafficable areas require 600mm of granular cover material with DuraGrid X geogrid installed 300mm above the system and extended 1.5m horizontally beyond the edge of the system.
Please note, the plate configuration shall be specifically designed by the project engineer for installations with more than 2m of cover or trafficable applications with less than 600mm of cover.
How many modules will I need for my site?
This will depend on the size of the stormwater system you’re looking to put in. An engineer will guide you to work out the storage capacity for your site. When you know the cubic volume, use the following as a guide:
- 1m3 – 8 crates.
- 3m3 – 24 crates.
- 10m3 – 80 crates.
You may also need to check with your local council for any regulations.
How long does it take to set up each module?

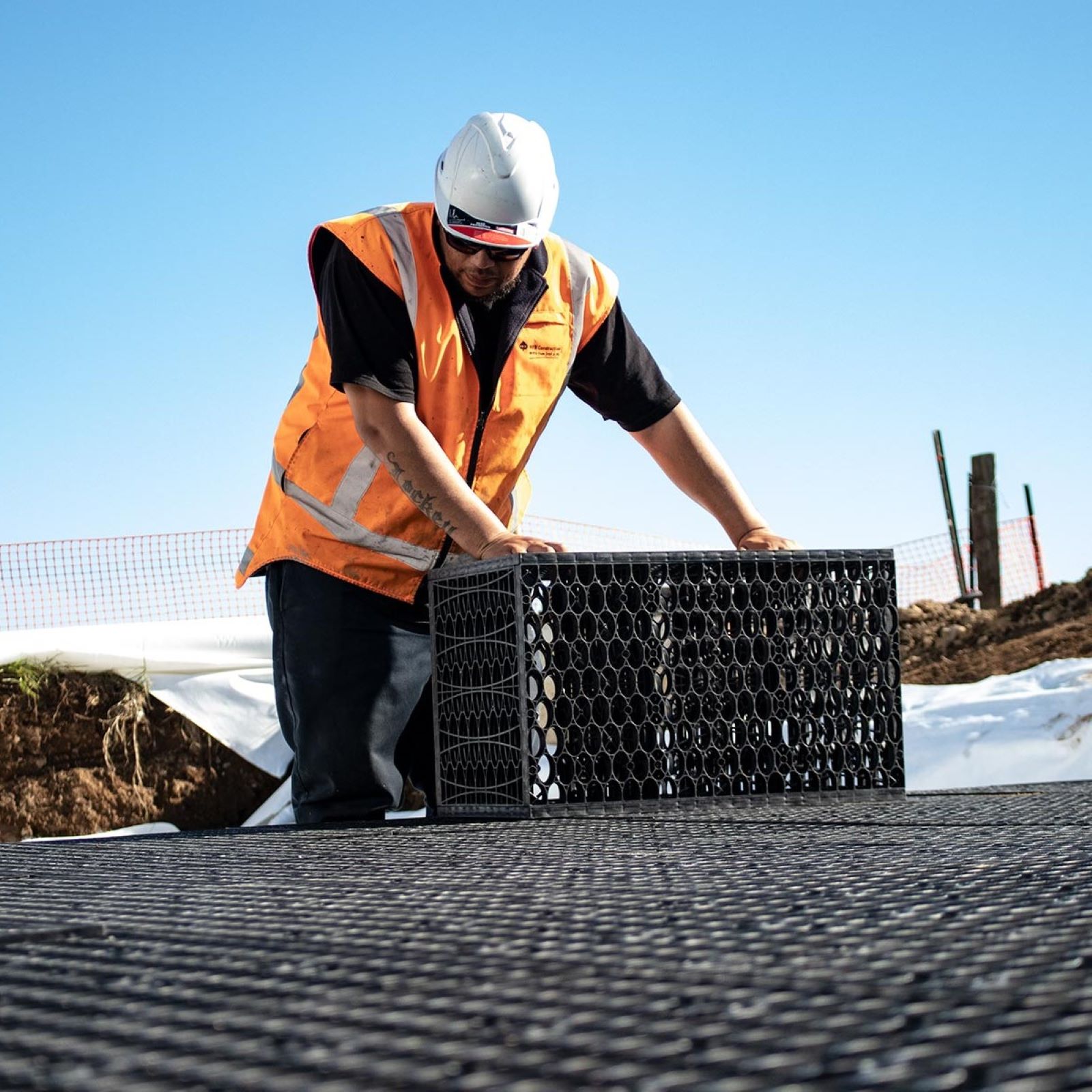

SureSoak modules are supplied flat packed and will need to be assembled on site. Building the modules should take 2-3 minutes per module.
